DMX Series

DMX Decoder Series

Devices that convert DMX control data for compatible PWM, relay or SPI outputs.

Series Planning

Planning with the DMX Decoder Series

Start with the required role in the lighting system, then compare that requirement with the confirmed information on each device page.

System Role

Use this series where DMX control data must be converted for a compatible PWM, relay, or SPI output workflow.

Planning Focus

Match the intended output method, channel assignment, wiring plan, and address map before commissioning.

Device Selection

Do not treat similarly named decoders as interchangeable; confirm the output role and verified device information.

OLIDMX Knowledge Notes

DMX Decoder Series FAQ

Questions about the device roles and system planning covered by DMX Decoder Series.

What is DMX Decoder Series used for?

Devices that convert DMX control data for compatible PWM, relay or SPI outputs. Read the guide to DMX decoders.

Which devices are included in DMX Decoder Series?

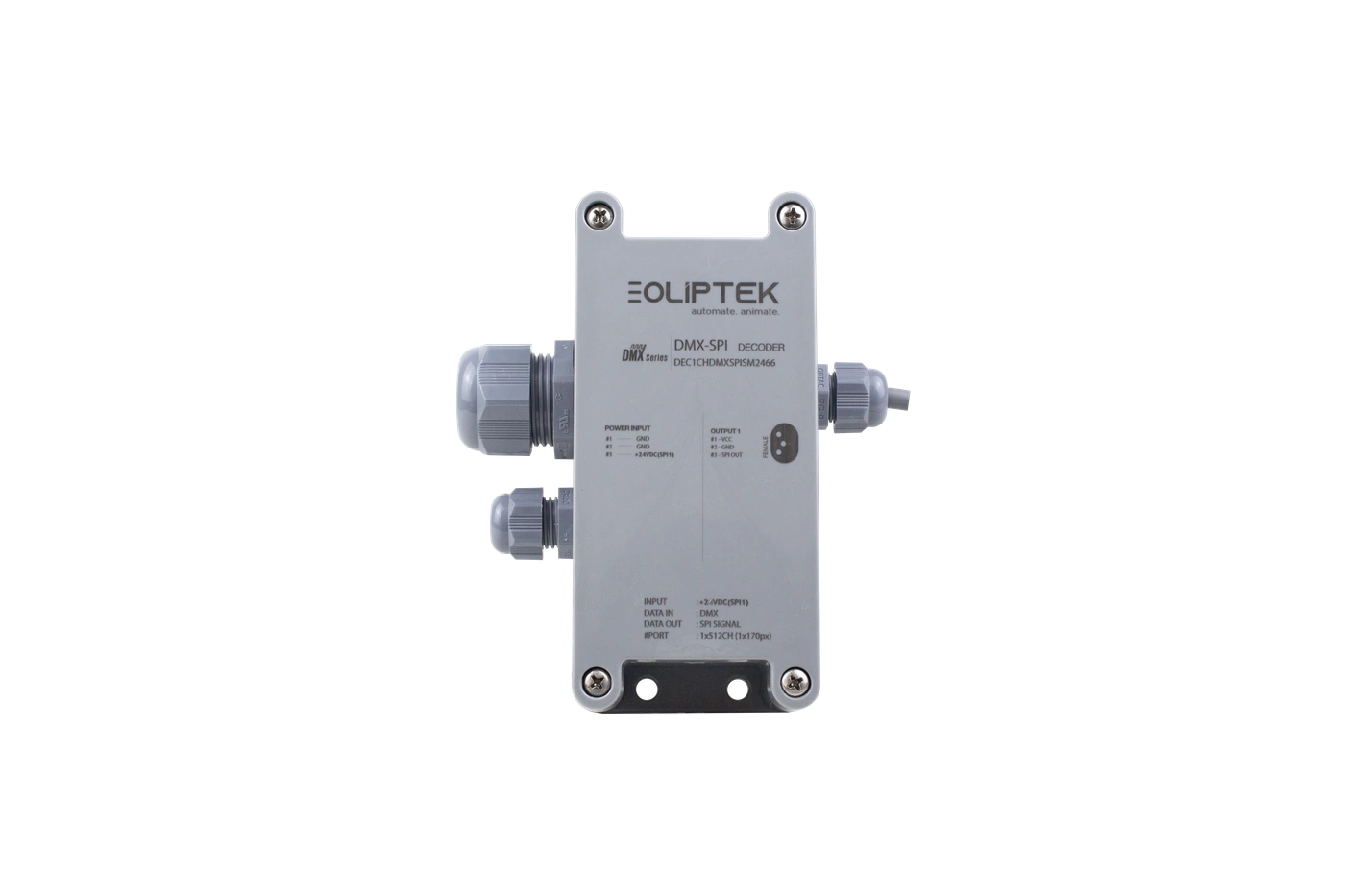

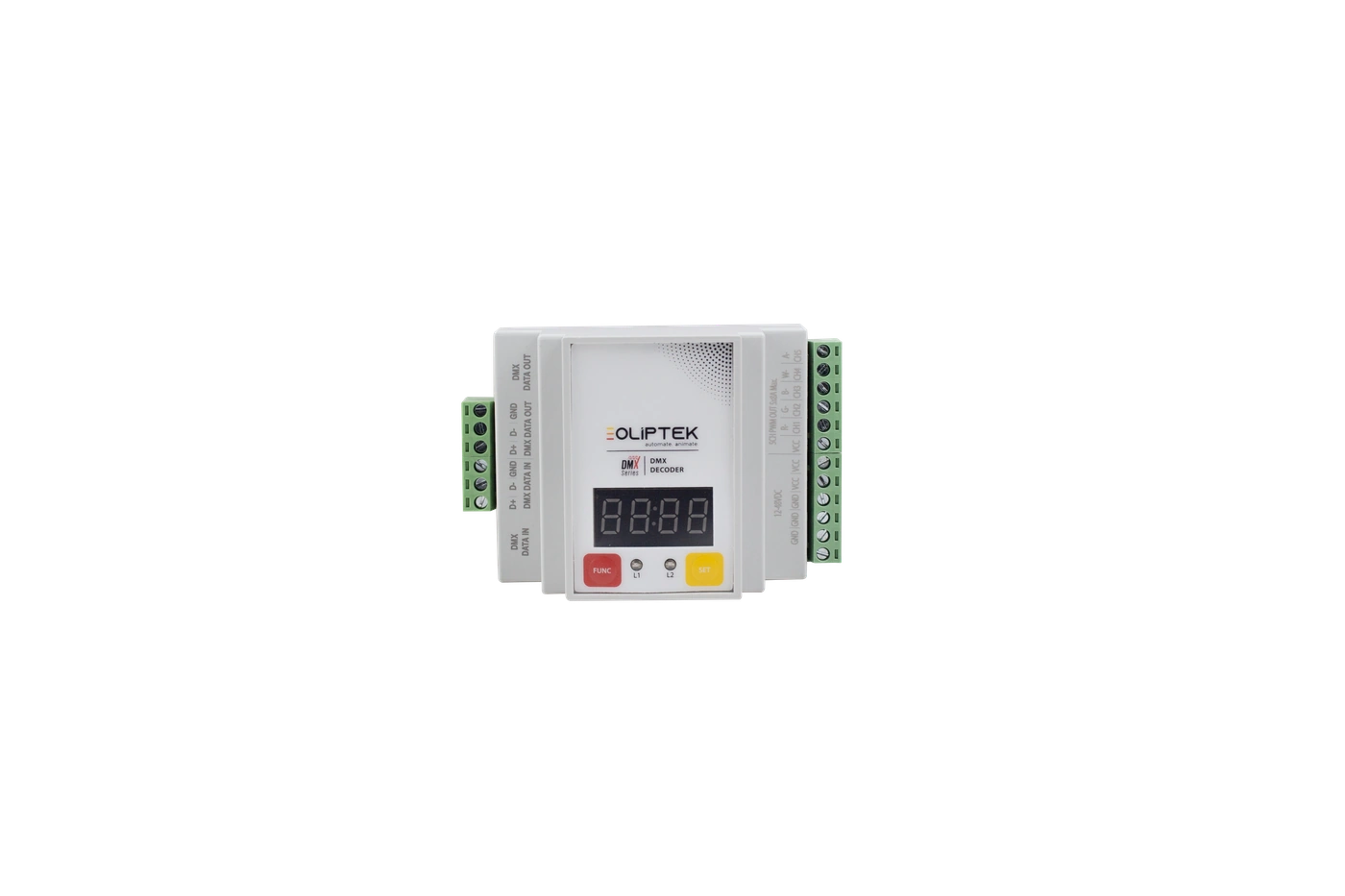

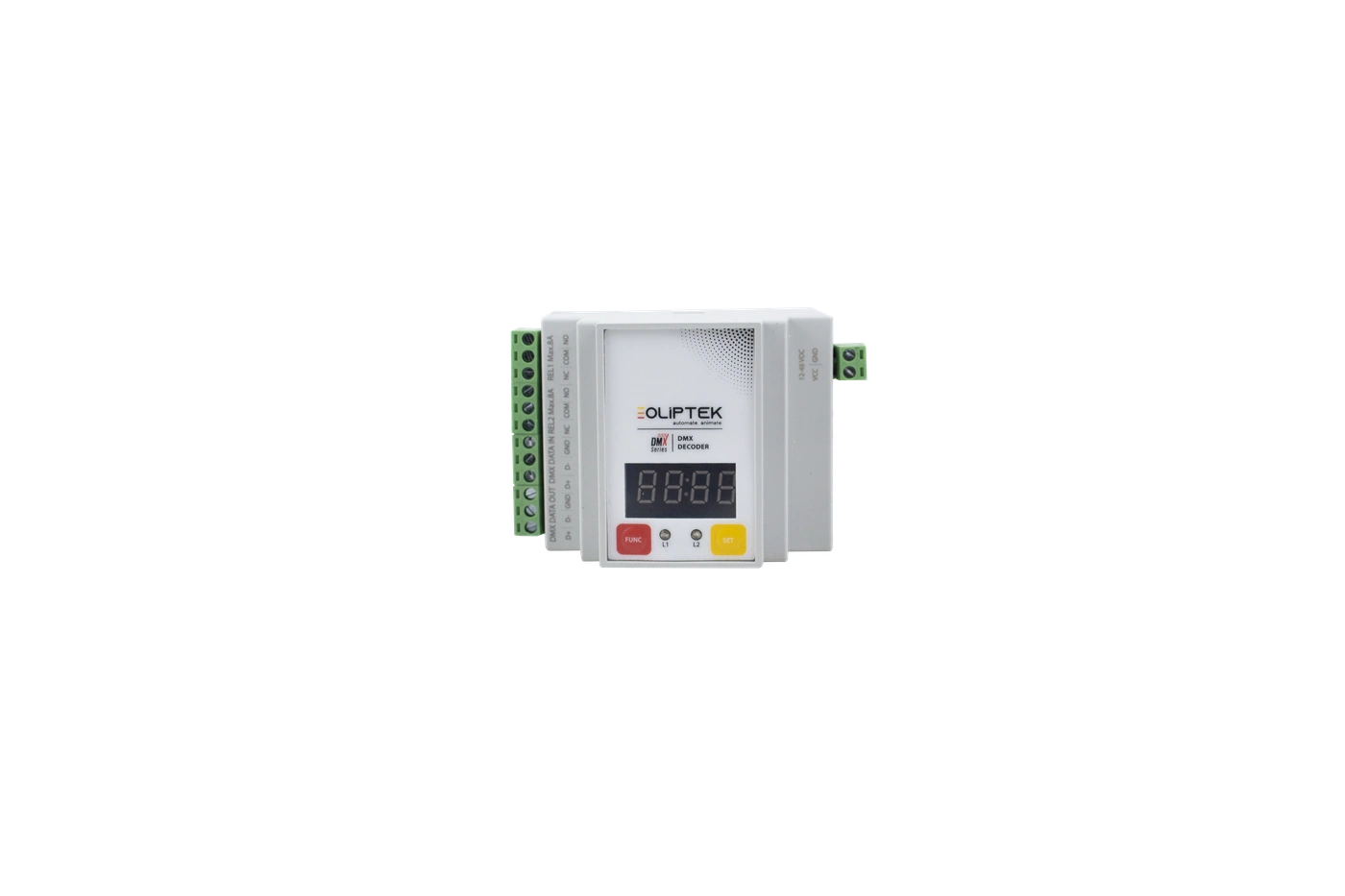

The listed devices are 5CH DMX to PWM Decoder, 4CH DMX to PWM Decoder, 2CH DMX Relay, 1CH DMX to SPI Decoder.

How does DMX Decoder Series fit into a DMX system?

Choose this series when its device roles match the required control, signal routing, conversion or RF PWM dimming stage in the lighting system.
